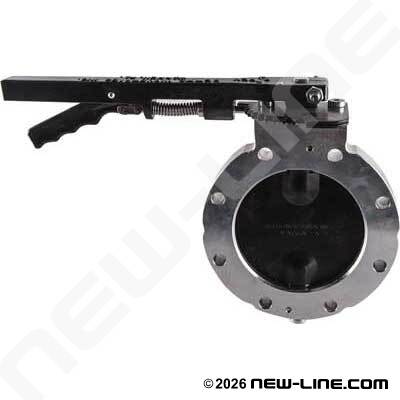

BET-WDAL: Aluminum TTMA Butterfly Valve (Buna or Viton Seals)

BET-WDAL: Aluminum TTMA Butterfly Valve (Buna or Viton Seals)

Lightweight, compact butterfly valve used for liquid, gaseous or dry products. It has an 8-position locking handle which holds the disc in desired position. The standard body is aluminum, but also available in cast iron or stainless-lined. The disc seal and shaft O-ring is available in several materials. Maximum pressure: 75 psi. Buna-N: -40°C (-40°F) to +116°C (+240°F); Viton: -17°C (-0°F) to +204°C (+400°F)

Temperature Range: Buna-N: -40°C (-40°F) to +93°C (+200°F). Viton: -17°C (-0°F) to +204°C (+400°F).

Detail Comments: *Also available with Urethane (suffix U) or EPDM (suffix E) disc materials.

BET-WD306ALB 3" ALUMINUM TTMA BUTTERFLY VALVE BUNA-N DISC
N - Non Stock - Minimums, Lead Time 3.20 lbs
BET-WD306ALV 3" ALUMINUM TTMA BUTTERFLY VALVE VITON DISC
D - Regional Stock 3.16 lbs
BET-WD406ALB 4" ALUMINUM TTMA BUTTERFLY VALVE BUNA-N DISC
N - Non Stock - Minimums, Lead Time 5.04 lbs
BET-WD406ALV 4" ALUMINUM TTMA BUTTERFLY VALVE VITON DISC
D - Regional Stock 5.09 lbs
