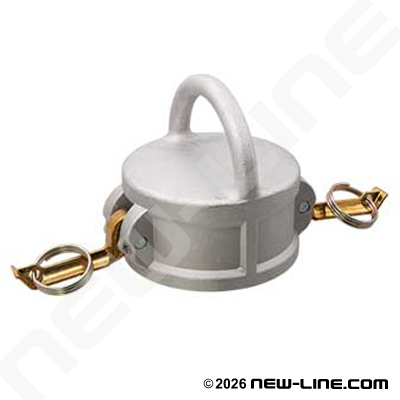

Aluminum Camlocks (Standard) - 266
Camlocks are ideal where frequent and fast connections are required on fluid transfer lines (no camlock materials or styles are designed for use with compressed air, gases or steam). The bodies and gaskets are available in several different materials to suit various applications or environments. Our standard aluminum feature 304 stainless pins, forged brass arms, plated steel finger rings, sandcast body finish, and are heat treated to provide greater durability. They are made to strict tolerances to ensure a leak proof seal (i.e. they meet MIL SPEC 27487, A-A-59326 American Standard and DIN2828 German Standard in sizes 3/4" to 6" and will interchange with others that meet these specifications (no government standards have been set for the 1/2", 8", and 10" sizes, therefore not all brands of 1/2", 8" & 10" Camlocks interchange). Always confirm if gasket material is compatible with fluid (refer to the back of the 'Camlocks Section' for full listing of gasket materials).
Rated Working Pressure @ 20°C (70°F):
1/2" to 4" sizes = 150psi, 5"-6" = 75-100psi, and 8" = 50psi (for higher pressure camlocks refer to "Heavy Duty Camlocks" listed in this section.
Temperature Range: As a guide only, aluminum may be suitable for -100°C (-150°F) to +121°C (+250°F)
